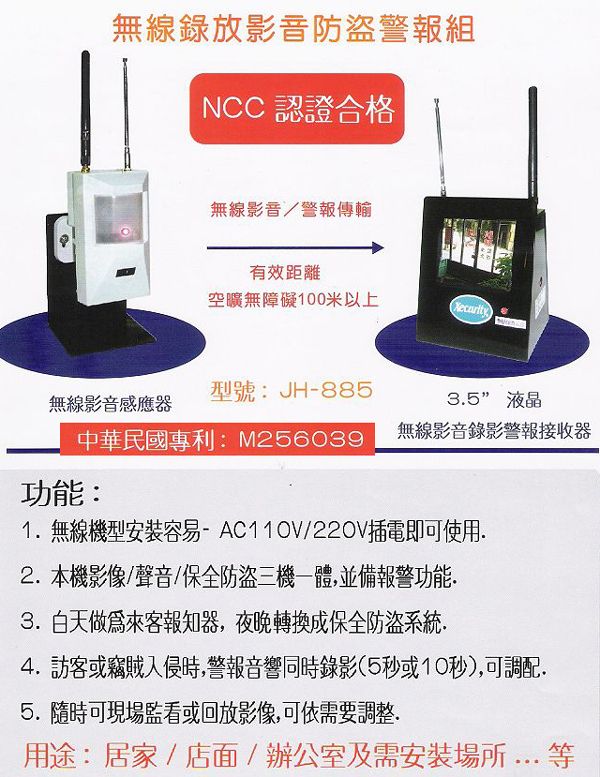

JH-885無線錄放影音警報系統特色:
1. 無線機型安裝容易- AC110V/220V插電即可使用.
2. 本機影像/聲音/保全防盜三機一體,並備報警功能.
3. 白天做為來客報知器, 夜晚轉換成保全防盜系統.
4. 訪客或竊賊入侵時,警報音響同時錄影(5秒或10秒),可調配.
5. 隨時可現場監看或回放影像,可依需要調整.
規格:
*JH-230E
無線影音感應器
TV SYSTEM
NTSC
PAL
Pick up Device
1/3” CCD image sensor
Picture Elements
512(H)x 492(V)
500(H)x 582(V)
S / N Ratio
More than 48dB
Resolution
More then 350TV lines
Min. illumination
0.5 LUX (F2.0)
Lens
Built-in 3.7mm pinhole Lens
Video wireless Frequency
2.4 Ghz / 8ch. adjustable
Detection Mode
Passive Infrared 3 layers
Detection Angle
35° × 10 meters
Warm Up Time
60 sec.
PIR Sensor
Wireless alarm
Pir wireless frequency
304Mhz /6561set adjustable
Operation Temperature
-10°C~+60°C
Power Source
DC 12 V 350mA
Dimension
70mm(W)*120mm(L)*48mm(H)
*JH-350PVR
無線影音警報錄放影機-含3.5"營幕
Wireless frequency
A/V: 2.4GHZ/ 8ch. adjustable
Alarm: 304 MHZ/ 6561 set adjustable
Display
3.5” TFT LCD
Power
DC12V
Record resolution
Record 320x 240 MPEG4, Snapshot 320 x 240 JPEG
Recording Mode
User manual / motion detective/ alarm trig by JH-230E
Data search
Manual
System format
NTSC/PAL optional
IR remote
For pvr control use
|
