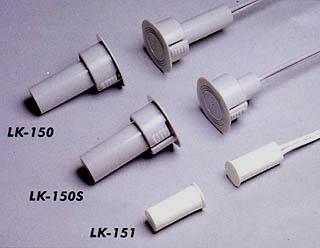

LK-150/隱藏式磁簧開關(金屬門用)
for steel door
LK-151 for wood or aluminum door
LK-150/150S LK-151
Contact Rating 0.2A@50VDC (resistive load)
Contact Capacity 8W(resistive load)
Operating Gap 28mm min. 15mm min.
Operating Temperature -10oC to +50oC
Life Expectancy Over 1 million cycles of
operatins at 0.5A @ 12VDC
Magnet Used Nd Feb N35
